Modular Cooking Range Line

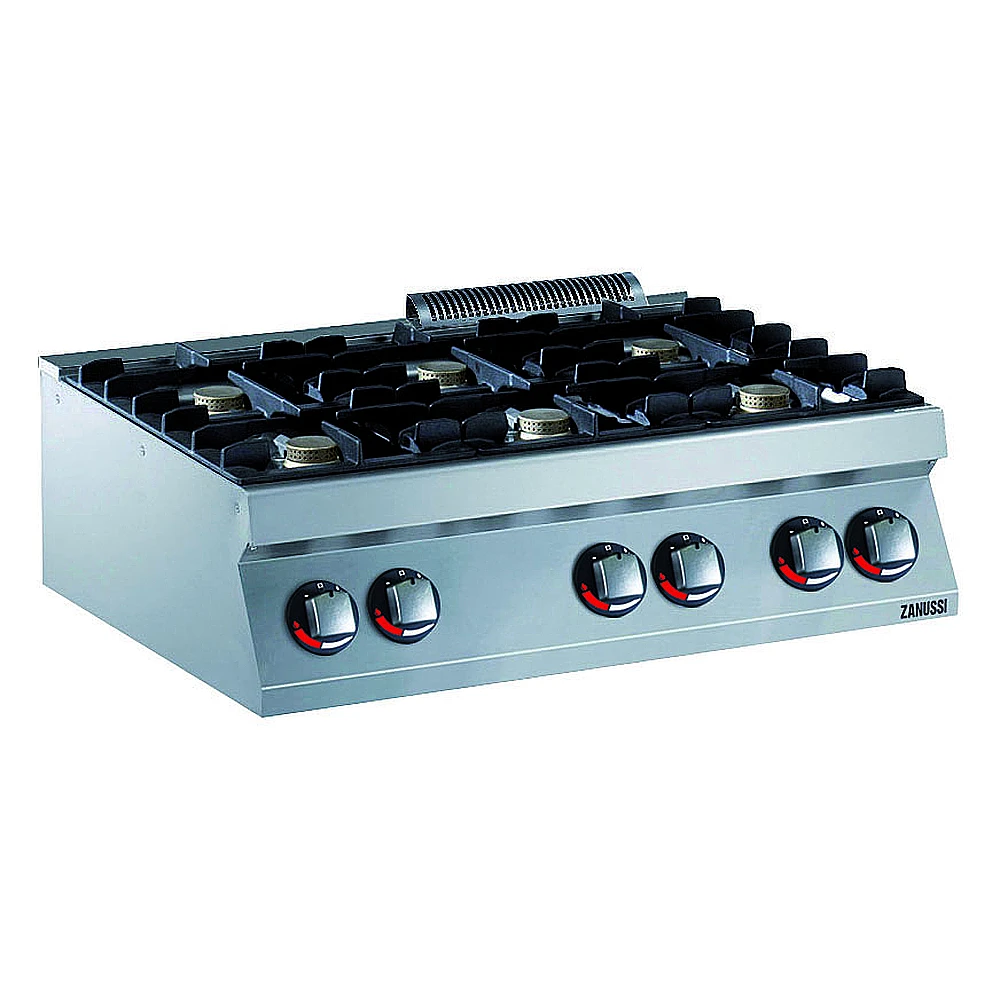

EVO700 6-Burner Gas Boiling Top 372150
6-burner (5,5 kW each) gas boiling top (AGA)
- Features
- Specifications
- Documents
Main Features
The six 5.5 kW high efficiency flower flame burners allow the flame to adapt to different size pans.
Burners to feature flame regulator.
IPx4 water protection.
Protected pilot light.
Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.
Pan supports in cast iron are washable in a dishwasher.
Suitable for countertop installation.
Construction
One piece pressed 1.5 mm work top in Stainless steel.
Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.
All exterior panels in Stainless Steel with Scotch Brite finishing.
Gas
- Natural gas - Pressure: 7" w.c. (17.4 mbar)
- Gas Power: 33 kW
- Standard gas delivery: Natural Gas G20 (20mbar)
- Gas Type Option: LPG;Town
- Gas Inlet: 1/2"
Key Information:
- If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
- Net weight: 60 kg
- Shipping weight: 69 kg
- Shipping height: 520 mm
- Shipping width: 820 mm
- Shipping depth: 1260 mm
- Shipping volume: 0.54 m³
- Front Burners Power: 5.5 - 5.5 kW
- Back Burners Power: 5.5 - 5.5 kW
- Middle Burners Power: 5.5 - 0/5.5 - 0 kW
- [NOT TRANSLATED] N7CG
- Back Burners Dimension - mm Ø 60 Ø 60
- Front Burners Dimension - mm Ø 60 Ø 60
- Middle Burners Dimension - mm Ø 60 Ø 60
